Introduction

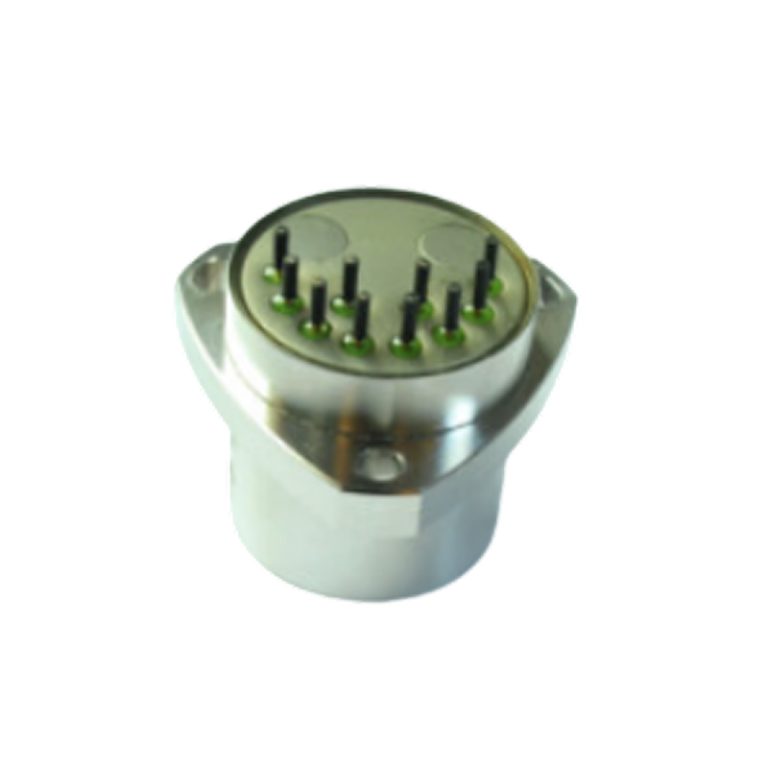

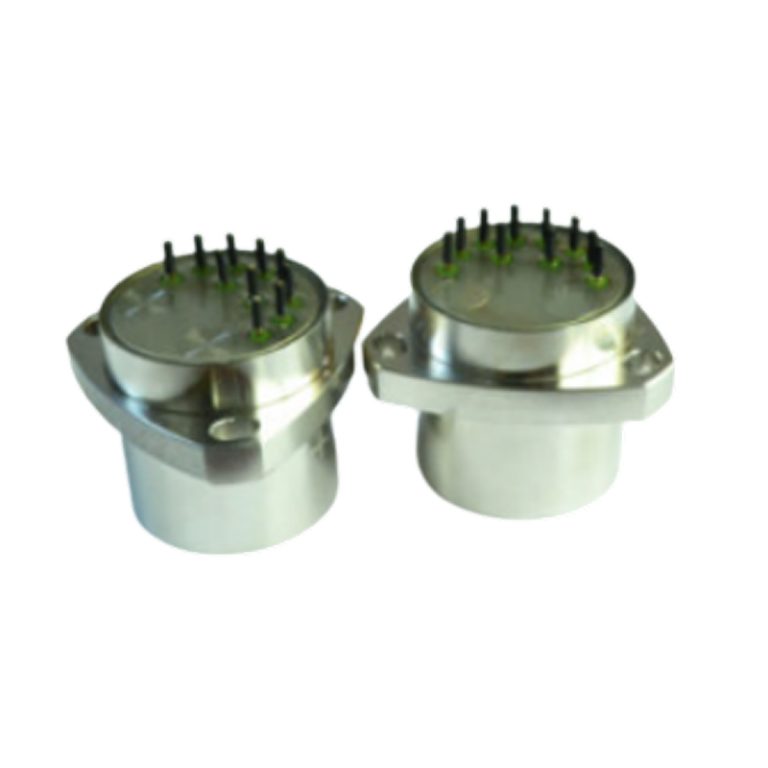

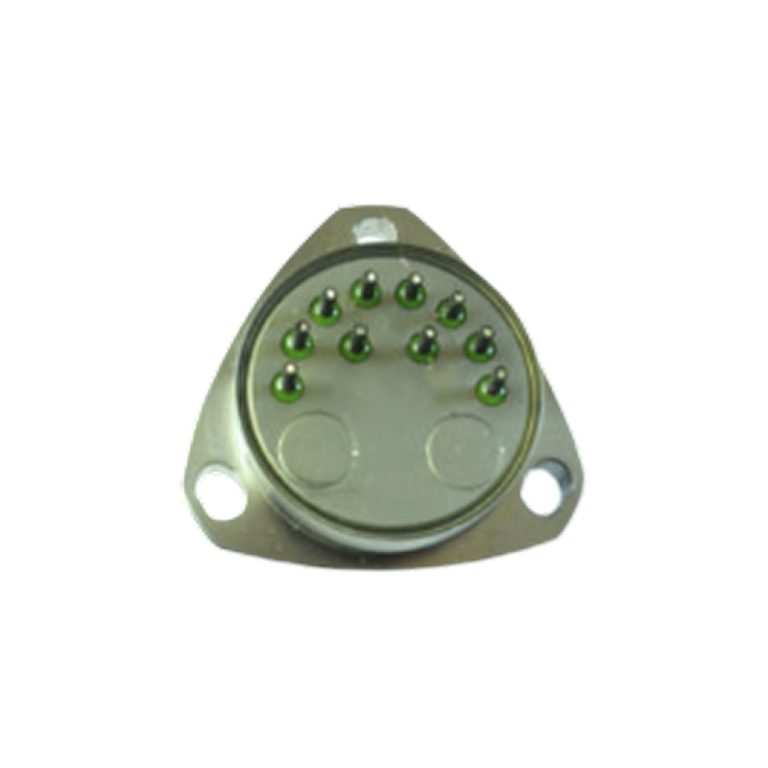

ADL-QA-03A High Performance Quartz Accelerometer with high reliability is mainly used in inertial measurement and test systems in the aerospace and aviation fields. It can carry out static test and dynamic test, which is a standard vibration sensor.
If interested in High Performance Quartz Accelerometer, pls contact us: info@andelutech.com
Specifications
| No. | Parameters | ADL -QA-03A1 | ADL -QA-03A2 | ADL -QA-03A3 | Unit |
| 1 | Range | ±50 | ±50 | ±50 | g |
| 2 | Threshold/Resolution | 5 | 5 | 5 | μg |
| 3 | Bias | ≤ (±3) | ≤ (±5) | ≤ (±7) | mg |
| 4 | Scale factor | 1.3±0.2 | 1.3±0.2 | 1.3±0.2 | mA/g |
| 5 | Class II non-linearity | ≤ (±20) | ≤ (±30) | ≤ (±30) | μg /g2 |
| 6 | Bias repeatability | ≤10 | ≤30 | ≤50 | μg |
| 7 | Factor scale repeatability | ≤15 | ≤30 | ≤50 | ppm |
| 8 | Class II non-linearity repeatability | ≤ (±10) | ≤ (±20) | ≤ (±30) | μg /g2 |
| 9 | Bias temp coefficient | ≤ (±10) | ≤ (±30) | ≤ (±50) | μg/℃ |
| 10 | Scale factor temp coefficient | ≤ (±20) | ≤ (±30) | ≤ (±50) | ppm /℃ |
| 11 | Noise | ≤5 | ≤8.4 | ≤8.4 | mv |
| 12 | Natural frequency | 400~800 | 400~800 | 400~800 | Hz |
| 13 | Bandwidth | 800~2500 | 800~2500 | 800~2500 | Hz |
| 14 | Vibration | 6g (20-2000Hz) | |||
| 15 | Shock | 100g, 5ms, 1/2sin | |||
| 16 | Operating temperature | -40~85 | -40~85 | -40~85 | ℃ |
| 17 | Temperature range | -60~120 | -60~120 | -60~120 | ℃ |
| 18 | Power Voltage | ±12~±15 | ±12~±15 | ±12~±15 | V |
| 19 | Current | ≤(±20) | ≤(±20) | ≤(±20) | mA |
| 20 | Temp. sensor | Yes and no two type | |||
| 21 | Size | Ф25.4X30 | Ф25.4X30 | Ф25.4X30 | mm |
| 22 | Weight | ≤80 | ≤80 | ≤80 | g |
