AND-JSD3

The AND-JSD3 series quartz flexible accelerometer is a compact, high-precision, wide-range military-grade inertial navigation accelerometer. The product features excellent long-term stability, repeatability, start-up performance, environmental adaptability, and high reliability. It is suitable for both static and dynamic testing, serving as a standard vibration sensor and inclination sensor.

Employing a unique miniaturised design and encapsulation process, the output current exhibits a linear relationship with applied force or acceleration. Users may calculate and select an appropriate sampling resistor to achieve high-precision output. An integrated temperature sensor can be incorporated upon request to compensate for bias and scale factor variations, thereby mitigating environmental temperature effects.

Applications: Inertial measurement within military inertial navigation systems for aerospace, aviation, naval, and armaments sectors; vibration isolation testing and inclination measurement for precision instrumentation.

1. Scale factor adjusted according to user requirements;
2. Temperature sensors: AD590, PT1000, 18B20;
3. Test cycle: 1 month, 3 months, 6 months, 12 months, conducted per user specifications;

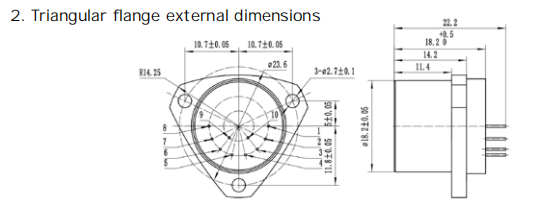

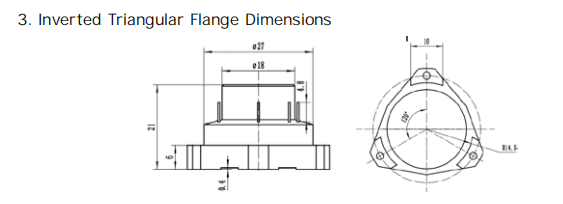

4. External dimensions subject to minor adjustments per installation requirements; all other testing criteria aligned with client specifications.

Disclaimer: Specifications are subject to change without notice. Beijing Andelu Technology Development Co., Ltd. reserves the right to modify any product or technology described herein to enhance reliability, functionality, or design, whilst providing consultation and interpretation.
