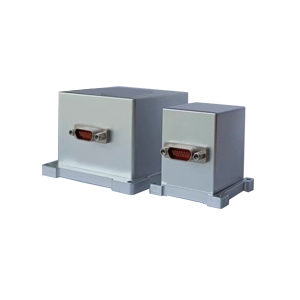

Picking a MEMS inertial measurement unit goes beyond just looking at price, axis count, or the top range. Two six-axis units can seem alike in their datasheet. Yet they may act quite differently inside a vehicle, robot, UAV, industrial setup, or navigation system.
Before purchase, engineers need to set clear targets for accuracy, expected motion, operating conditions, communication method, and the longest stretch without outside correction. The next seven points shape real-world results the most.
How Does Gyroscope Bias Instability Affect MEMS IMU Accuracy?
Gyroscope bias shows up as output even when the sensor stays still. This offset drifts over time, so integrating rate data slowly builds errors in attitude and heading.
Bias instability is stated in degrees per hour. A smaller number helps keep heading steady during GNSS gaps or when no other reference is available.
Engineers must separate bias instability from initial bias. Initial bias can usually be found at startup. Changing bias during use is harder to fix. When checking datasheets, confirm if the listed value is typical or guaranteed. Also note the stated temperature, bandwidth, filtering, and test length.
Which Accelerometer Bias Specifications Matter Most?
Accelerometer bias is the error seen when no linear acceleration acts on the unit. In navigation, this error turns into velocity and then position. A small bias can still cause large position drift after two integrations.
Key figures include in-run bias stability, turn-on-to-turn-on repeatability, temperature shift, long-term repeatability, and axis-to-axis consistency.
Turn-on repeatability counts when systems power up often. Large bias jumps after each cycle mean repeated calibration is needed. Engineers should not rely on the best single axis alone, because the weakest axis can limit whole-system results.
How Do Angular Random Walk and Velocity Random Walk Affect a MEMS IMU?
Bias instability covers low-frequency drift. Random walk covers noise effects that grow with time.
Angular random walk comes from gyroscope noise and limits short-term attitude accuracy. Velocity random walk comes from accelerometer noise and limits calculated velocity. Lower numbers help most when updates arrive rarely, slow motion must be sensed well, or GNSS is lost for a while.
Noise figures must be compared under matching bandwidth, sample rate, and filter settings. A value taken after strong filtering may look good yet fail to support the needed dynamic response.
Why Are Scale-Factor Error, Nonlinearity, and Cross-Axis Sensitivity Important?
Scale factor sets the link between real motion and sensor output. An error here grows with higher rates or accelerations.
Nonlinearity shows how much the response strays from a straight line over the full range. Cross-axis sensitivity appears when motion on one axis leaks into another.
Engineers should verify whether factory calibration already corrects scale factor, axis misalignment, nonlinearity, cross-axis effects, and temperature errors. Calibration cuts later work, yet remaining errors still need review.
What Measurement Range Should a MEMS IMU Have?
The chosen range must cover the highest expected rate and acceleration without clipping. Still, the widest range is not always best.
Too narrow a range clips data during fast turns, vibration, shocks, or sudden moves. An overly wide range may lower resolution or raise noise during normal low-dynamic motion.
The right pick leaves margin for surprises while keeping good resolution in daily use.
How Should Engineers Compare MEMS IMU Bandwidth and Output Data Rate?
Bandwidth sets how fast the sensor follows changing motion. Wider bandwidth catches quick changes but also lets more noise through.
Output data rate sets how often readings reach the host processor. It must match the needed bandwidth and limit aliasing.
A high output rate does not guarantee wide usable bandwidth. Engineers must weigh bandwidth, data rate, digital filtering, and latency as a group. Navigation tasks often favor smoother data, while control loops need quicker response.
Why Do Temperature Stability and Calibration Matter?
MEMS sensors react to temperature. Gyroscope bias, accelerometer bias, scale factor, and axis alignment can all shift as the unit warms or cools.
A wide operating-temperature range only shows the IMU will run inside those limits. It does not promise steady accuracy across the whole range.
Engineers should examine the calibrated temperature span, leftover bias after correction, scale-factor temperature coefficient, warm-up time, and the compensation approach used. Vehicles and machines outdoors often face fast temperature swings. Thermal gradients inside the housing can add extra errors.
How Should Engineers Evaluate Interfaces, Timing, and Environmental Reliability?
Which Interface and Synchronization Features Are Required?
The IMU must talk reliably to the host processor and other sensors. Common choices include UART, CAN, RS-232, RS-422, SPI, and Ethernet.
Synchronization matters when inertial data joins GNSS, cameras, LiDAR, or wheel-speed signals. Helpful features include hardware timestamps, external trigger inputs, pulse-per-second sync, adjustable output rates, and steady latency.
A fixed delay can often be corrected later. Timing jitter is harder to remove.
Can the IMU Survive the Real Operating Environment?
Lab accuracy means little if the unit cannot handle vibration, shock, dust, moisture, electrical noise, or mounting stress.
Check random-vibration limits, mechanical-shock ratings, ingress protection, electromagnetic compatibility, supply-voltage tolerance, connector retention, and mounting rules. A loose bracket or resonant mount can create errors even when the sensor meets its datasheet numbers.
How Can Engineers Compare MEMS IMU Datasheets Correctly?
Datasheet values can be compared only when test conditions match. Typical numbers should not be taken as guaranteed limits. Results from different bandwidths or filters should not be compared directly.
Ask for supporting data such as Allan variance plots, raw static recordings, temperature curves, vibration reports, interface details, mechanical drawings, and calibration steps.
Near the final choice, test sample units in the real setup. At Andelu, our products can be checked under actual temperature, vibration, timing, communication, and motion conditions before production begins.
FAQ
Q: How Do I Choose the Correct Andelu MEMS IMU for My Application?
A: Define the maximum angular rate, acceleration range, needed accuracy, temperature limits, vibration level, interface, and longest time without external correction. Pick the device against these minimum needs rather than the highest headline number.
Q: Which Andelu MEMS IMU Specifications Have the Greatest Effect on Navigation Accuracy?
A: Gyroscope bias instability, angular random walk, accelerometer bias, velocity random walk, scale-factor accuracy, and temperature stability usually matter most. Synchronization and latency also need checks, because timing mistakes can reduce the value of otherwise good data.
Q: Should Engineers Test an Andelu MEMS IMU Before Production?
A: Yes. Evaluate the unit inside the final navigation or control algorithm and under realistic motion, temperature, vibration, communication, and synchronization conditions. Datasheet numbers alone cannot fully predict system-level performance.
