Introduction
AND-TS-3165CA CAN Single Axis Tilt Meter is an industrial control field for the introduction of CAN open output uniaxial tilt sensor, using industrial standard isolator CAN transceiver, built-in high-precision 16bitA/D differential converter, through N-order filtering algorithm, so that the sensor output relative to the horizontal plane tilt and pitching angle CAN be measured. The product built-in high precision temperature sensor from ADI can correct the temperature drift of the sensor according to the changes of the built-in temperature sensor to ensure high repeatability of the product in low and high temperature environments. The output response frequency standard is as high as 100Hz, making it suitable for various harsh industrial control environments.
Features
Single axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90°(optional)
High vibration resistance>20000g
Baud rate 100K~500K bps
IP67 Protection
Output CAN open
Small volume (90*40*27mm) (customizable)

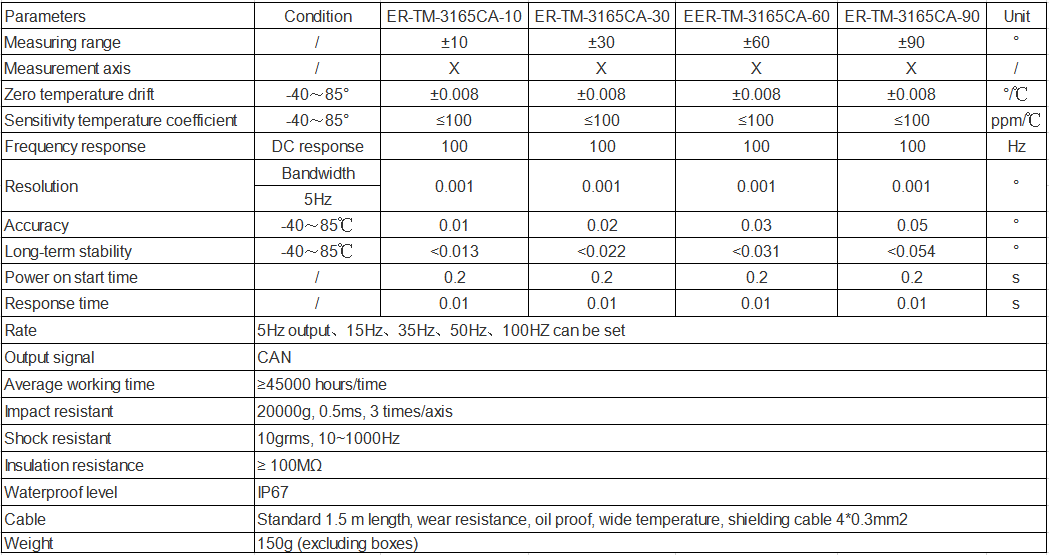

| Parameters | Condition | AND-TM-3165CA-10 | AND-TM-3165CA-30 | AND-TM-3165CA-60 | AND-TM-3165CA-90 | Unit |
| Measuring range | / | ±10 | ±30 | ±60 | ±90 | 。 |
| Measurement axis | 1 | X | X | X | X | / |
| Zero temperature drift | 40～85° | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ℃ |
| Sensitivity temperature coefficient | 40～85° | ≤100 | ≤100 | ≤100 | ≤100 | ppm/C |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | Bandwidth | 0.001 | 0.001 | 0.001 | 0.001 | 。 |
| 5Hz | ||||||
| Accuracy | 40～85℃ | 0.01 | 0.02 | 0.03 | 0.05 | 。 |
| Long-term stability | 40～85℃ | <0.013 | <0.022 | <0.031 | <0.054 | 。 |
| Power on start time | 1 | 0.2 | 0.2 | 0.2 | 0.2 | S |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | S |
| Rate | 5Hzoutput、15Hz、35Hz、50Hz、100HZ canbe set | |||||
| Output signal | CAN | |||||
| Average working time | ≥45000 hourstime | |||||
| lmpact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| nsulation resistance | ≥100MΩ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5m length,wear resistance,oil proof,wide temperature,shielding cable 4*0.3mm2 | |||||
| Weight | 150g(excluding boxes) | |||||
