Introduction
AND-TS-3269DI is a digital output dual axis tilt sensor used in the field of industrial control. Built-in high-precision 16bit A/D converter and N-order filtering algorithm are used to measure the inclination and pitch angle of the sensor output relative to the horizontal plane. The output interface has RS232, RS485, RS422, TTL, PWM, CAN, MODBUS to choose from.
The product is equipped with a high-precision digital sensor from ADI company, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The output corresponding frequency is 100Hz, which is a real industrial product, with reliable and stable performance, good scalability, and a variety of output options, making it suitable for various industrial control environments.

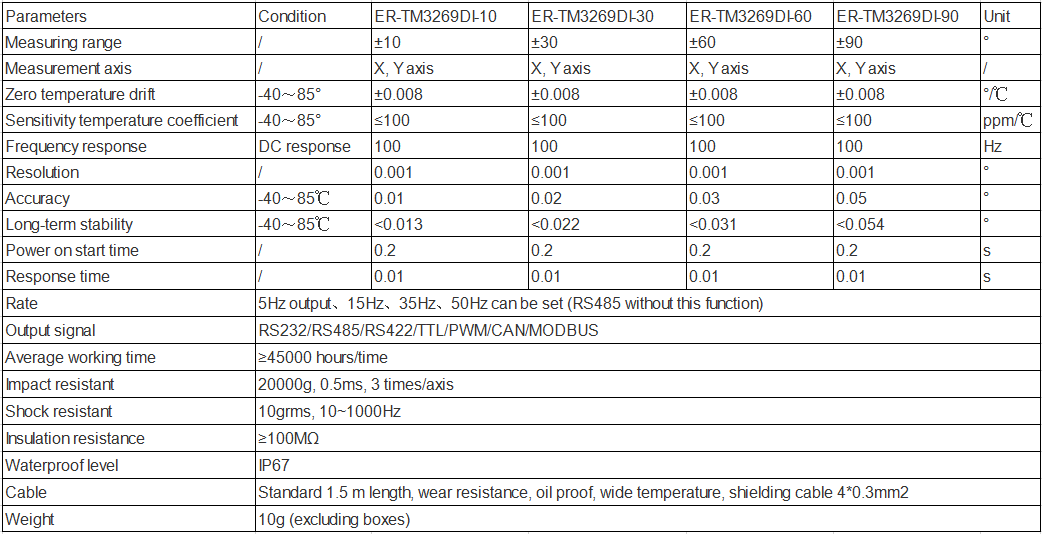

Features
Dual axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90°(optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Can output RS232/RS485/TTL/MODBUS (optional)
Small volume (46*35*8mm) (customizable)
Applications
High voltage power line tower pole monitoring
Satellite solar antenna positioning
AGV trolley
Mining machinery, oil logging equipment
Medical equipment
Tilting leveling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams
