Introduction
It is a standard industrial high-precision current output dual-axis inclination sensor. The standard current can be selected from 4-20mA, 0-20mA, and 0-24mA. It can be output through RS232 and can be transmitted over a distance of 2000 meters. The operator only needs to collect the voltage value of the sensor to calculate the current tilt angle of the object. The built-in (MEMS) solid pendulum can be converted into the change of the inclination angle by measuring the change of the static gravity field.
The product adopts MEMS sensor production technology, which can accurately compensate and correct temperature errors and linear errors. It has high accuracy, small size, high packaging technology, strong vibration resistance, built-in anti-radio frequency, and anti-electromagnetic interference circuit characteristics, especially suitable for underground applications in harsh industrial environments such as trenchless machinery.

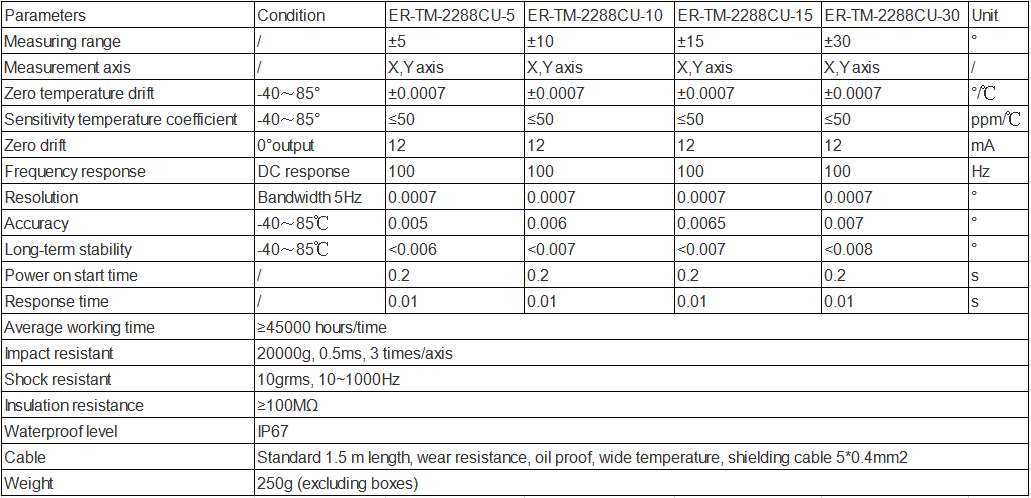

Features
Two axis tilt monitoring
Full range accuracy 0.005°, resolution 0.0007°
Output 4~20mA, 0~20mA, 0~24mA (optional)
Wide-voltage input DC 11~36V
Wide temperature working -40~+85℃
Range 0~±5/±10/±15/±30° (optional)
High vibration resistance >20000g
IP67 protection
Can output RS232 at the same time
Volume (107*55*27mm) (customizable)
Applications
Railway gauge ruler, gauge instrument
Satellite solar antenna positioning
High altitude work vehicle
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
For sensors, parts and modules: in a stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
