Introduction
It is a high-precision CANopen single-axis inclination sensor for industrial field control. It adopts industry standard isolator CAN transceiver with resolution of 0.0008°, accuracy of 0.005°, and temperature drift of 0.0005°/℃, which is a real industrial-grade product.
ADI has a built-in high-precision temperature sensor, which can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product regardless of low temperature or high temperature environment. The output response frequency standard is up to 100Hz, which is suitable for various harsh working environments.
Features
Single axis tilt monitoring
Full range accuracy 0.005°, resolution 0.0007°
Output frequency 5~100HZ (optional)
Wide-voltage input DC 11~36V
Wide temperature working -40~+85℃
Range 0~±5/±10/±15/±30° (optional)
High vibration resistance>20000g
Baud rate: 100K~500K bps
IP67 protection
Output CANopen
Volume (107*55*27mm) (customizable)
Applications
High voltage wire tower monitoring
Satellite solar antenna positioning
Aerial work truck
Mining machinery, oil logging equipment
Medical equipment
Tilting leveling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams

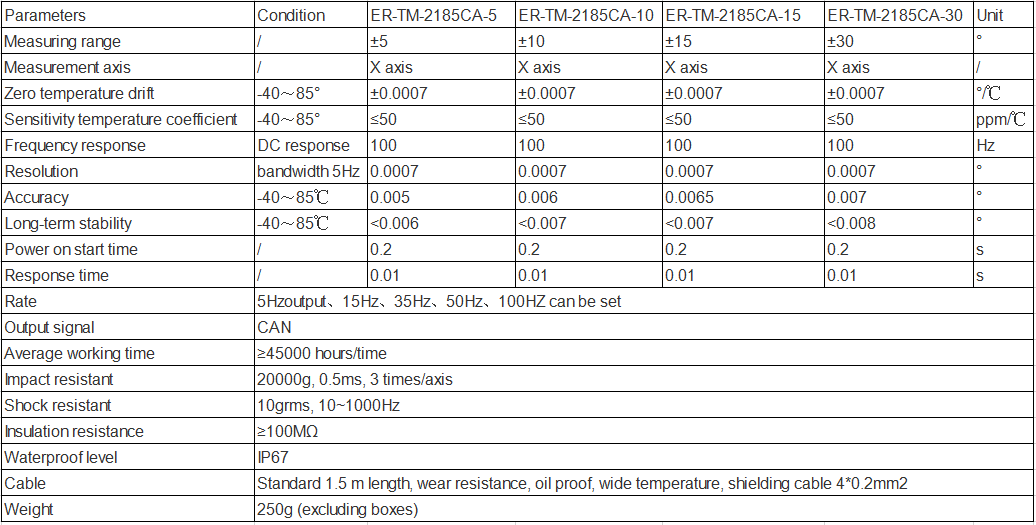

| Parameters | Condition | AND-TM-2185CA-5 | AND-TM-2185CA-10 | AND-TM-2185CA-15 | AND-TM-2185CA-30 | Unit |
| Measuring range | / | ±5 | ±10 | ±15 | ±30 | 。 |
| Measurement axis | / | Xaxis | X axis | X axis | X axis | / |
| Zero temperature drift | 40~85° | ±0.0007 | ±0.0007 | ±0.0007 | ±0.0007 | rC |
| Sensitivity temperature coefficient | 40～85° | ≤50 | ≤50 | ≤50 | ≤50 | ppm/C |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | bandwidth 5Hz | 0.0007 | 0.0007 | 0.0007 | 0.0007 | 。 |
| Accuracy | 40～85℃ | 0.005 | 0.006 | 0.0065 | 0.007 | 。 |
| Long-term stability | 40～85℃ | <0.006 | <0.007 | <0.007 | <0.008 | 。 |
| Power on start time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
| Rate | 5Hzoutput、15Hz、35Hz、50Hz、100HZ canbe set | |||||
| Output signal | CAN | |||||
| Average working time | ≥45000 hourstime | |||||
| Impact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| nsulation resistance | ≥100MQ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5mlength,wear resistance,oil proof,wide temperature,shielding cable 4*0.2mm2 | |||||
| Weight | 250g(excluding boxes) | |||||
