Introduction
AND-TS-3266DI is a serial dual-axis inclinometer designed specifically for industrial control using MEMS technology and digital output. Built-in high-precision16bit A/Ddifferential converter, through N filtering algorithm, which can measure the angle of sensor output relative to the horizon taltilt and pitch tilt. The output interfaces RS485, RS232, RS422, TTL, CAN, MODBUS are optional.
The product is equipped with a high-precision digital sensor from ADI, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The corresponding output frequency is 100Hz. The finished product has reliable and stable performance, good scalability, and a variety of output options, which are suitable for various industrial control environments.
Features
Dual axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90° (optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Can output RS232/RS485/TTL/MODBUS (optional)
Small volume (90*40*27mm) (customizable)

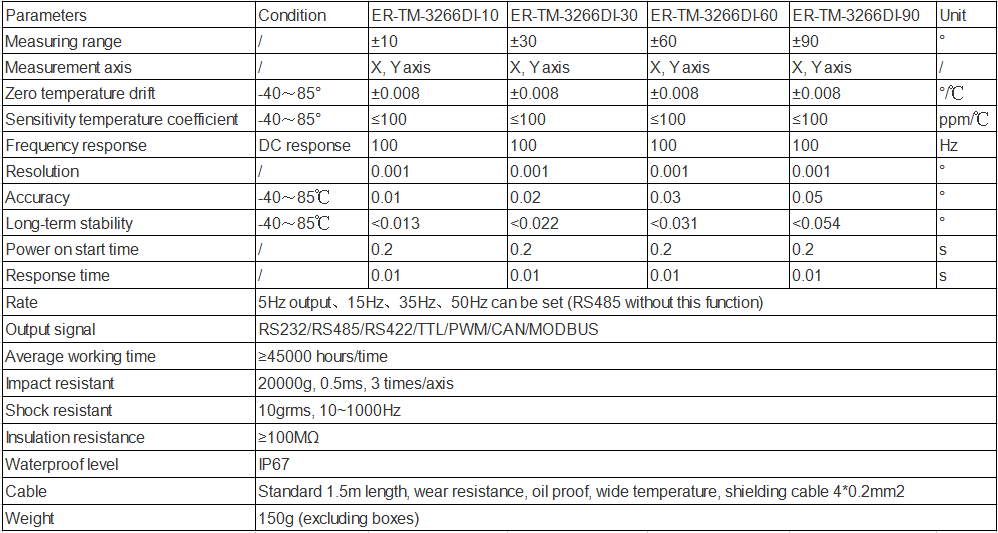

| Parameters | Condition | AND-TM-3266D-10 | AND-TM-3266DL30 | AND-TM-3266DL60 | AND-TM-3266DL90 | Unit |
| Measuring range | / | ±10 | ±30 | ±60 | ±90 | ○ |
| Measurement axis | / | X,Yaxis | X,Yaxis | X,Yaxis | X,Yaxis | / |
| Zero temperature drift | 40~85° | ±0.008 | ±0.008 | ±0.008 | ±0.008 | PC |
| Sensitivity temperature coefficient | 40～85° | ≤100 | ≤100 | ≤100 | ≤100 | ppm/C |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | / | 0.001 | 0.001 | 0.001 | 0.001 | 。 |
| Accuracy | 40～85℃ | 0.01 | 0.02 | 0.03 | 0.05 | 。 |
| Long-term stability | 40～85℃ | <0.013 | <0.022 | <0.031 | <0.054 | 。 |
| Power on start time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
| Rate | 5Hzoutput、15Hz、35Hz、50Hz can be set(RS485without this function) | |||||
| Output signal | RS232/RS485/RS422/TTL/PWM/CAN/MODBUS | |||||
| Average working time | ≥45000 hours/time | |||||
| mpact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| Insulation resistance | ≥100MQ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5m length,wear resistance,oilproof,wide temperature,shielding cable 4*0.2mm2 | |||||
| Weight | 150g(excluding boxes) | |||||
