Introduction
AND-TS-2186DI is a high-precision single-axis tilt sensor with a resolution of 0.0007°, an accuracy of 0.005°, and a temperature drift of 0.0007°/℃. The output interface has RS232, RS485, RS422, TTL, CAN, MODBUS bus to choose from.
The product is equipped with ADI’s high-precision digital sensor, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low temperature and high temperature environments. Its corresponding frequency is 100Hz, the performance is reliable and stable, and the scalability is good, that is, it is suitable for various industrial control environments.
Features
Single axis tilt monitoring
Full range accuracy 0.005°, resolution 0.0007°
Output frequency 5~100HZ (optional)
Wide voltage input DC 11~36V
Wide temperature working -40~+85℃
Measuring range 0~±5/±10/±15/±30° (optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Can output RS232/RS485/TTL/MODBUS (optional)
Small volume (107*55*27mm) (customizable)
Applications
High-voltage wire tower pole monitoring
Satellite solar antenna positioning
Precision machine tool horizontal control
Precision laser platform equipment
Medical equipment
Tank leveling
Railway locomotive
Based on tilt monitoring
Angle control of various construction machinery
Inspection of bridges and dams

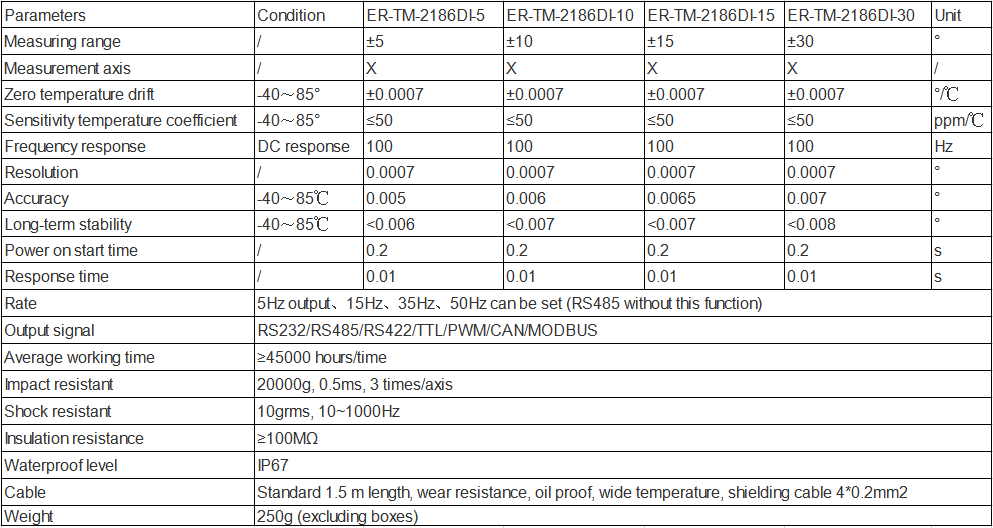

| Parameters | Condition | AND-TM-2186D-5 | AND-TM-2186DL10 | AND-TM-2186DL15 | AND-TM-2186DL30 | Unit |
| Measuring range | / | ±5 | ±10 | ±15 | ±30 | 。 |
| Measurement axis | / | x | x | x | x | / |
| Zero temperature dift | -40～85° | ±0.0007 | ±0.0007 | ±0.0007 | ±0.0007 | PC |
| Sensitivity temperature coefficient | 40～85° | ≤50 | ≤50 | ≤50 | ≤50 | ppm/C |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | / | 0.0007 | 0.0007 | 0.0007 | 0.0007 | 。 |
| Accuracy | 40~85℃ | 0.005 | 0.006 | 0.0065 | 0.007 | ○ |
| Long-term stability | 40～85℃ | <0.006 | <0.007 | <0.007 | <0.008 | 。 |
| Power onstart time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
| Rate | 5Hzoutput、15Hz、35Hz、50Hz canbe set(RS485 without this function) | |||||
| Output signal | RS232/RS485/RS422/TTL/PWM/CAN/MODBUS | |||||
| Average working time | ≥45000 hours/time | |||||
| mpact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| nsulation resistance | ≥100MQ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5m length,wear resistance,oil proof,wide temperature,shielding cable 4*0.2mm2 | |||||
| Weight | 250g(excluding boxes) | |||||
