Introduction
This is a full temperature compensation high-precision two-axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interface has RS232, RS485, RS422, TTL, Modbus to choose from. This product is a customized inclinometer used to measure the inclination of rock and soil foundation pits. It integrates a 24-bit ARM high-end system with a resolution of 4 seconds and a response frequency of up to 100 Hz. The operator only needs to connect the inclinometer to the data transmission computer to make a high-precision inclinometer.

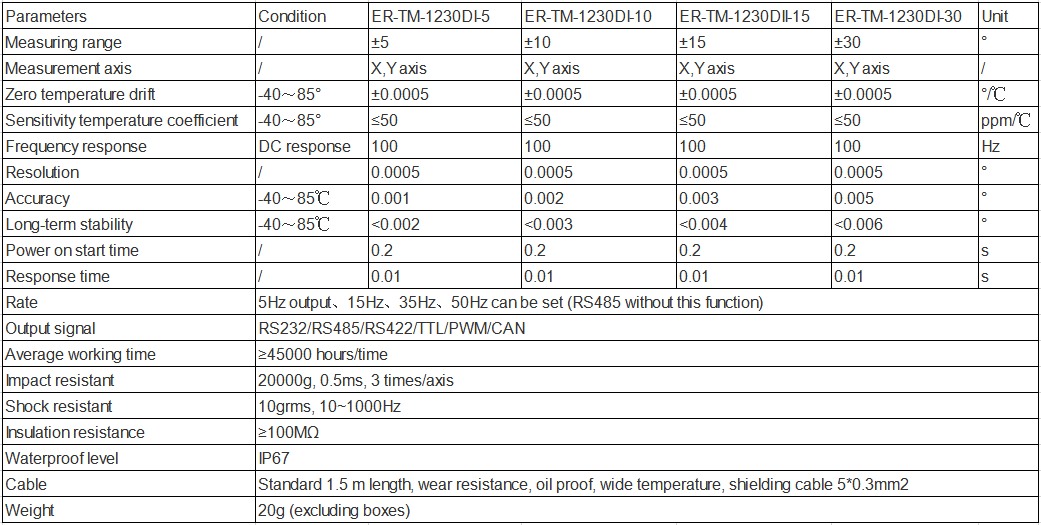

Features
Two axis tilt monitoring
Full range accuracy 0.001°, resolution 0.0005°
Output frequency 5~100HZ (optional)
Wide voltage input DC 11~36V
Wide temperature working -40~+85℃
Measuring range 0~±5/±10/±15/±30°(optional)
High vibration resistance>20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Output RS232/RS485/TTL/MODBUS (optional)
Small volume (160*20*20mm) (customizable)
Applications
High-voltage wire tower pole monitoring
Satellite solar antenna positioning
Precision machine tool horizontal control
Precision laser platform equipment
Medical equipment
Tank leveling
Railway locomotive
Based on tilt monitoring
Angle control of various construction machinery
Monitoring of bridges, dams, and buildings
