Introduction
It is a full temperature compensation high-precision two-axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interface has RS232, RS485, RS422, TTL, Modbus to choose from.
The tilt sensor adopts digital signal transmission, supports professional computer software, data measurement and recording. It is a non-contact installation. The operator only needs to fix the sensor on the surface of the object to be measured with screws to calculate the horizontal angle of the object. It also has the advantages of strong resistance to external electromagnetic interference and strong earthquake resistance.
Features
Two axis tilt monitoring
Full range accuracy 0.001°, resolution 0.0005°
Output frequency 5~100HZ (optional)
Wide voltage input DC 11~36V
Wide temperature working -40~+85℃
Measuring range 0~±5/±10/±15/±30°(optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 Protection
Output RS232/RS485/TTL/MODBUS (optional)
Small volume (107*55*27mm) (customizable)
Applications
High voltage wire tower monitoring
Satellite solar antenna positioning
Aerial work truck
Mining machinery, oil logging equipment
Medical equipment
Tilting leveling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams

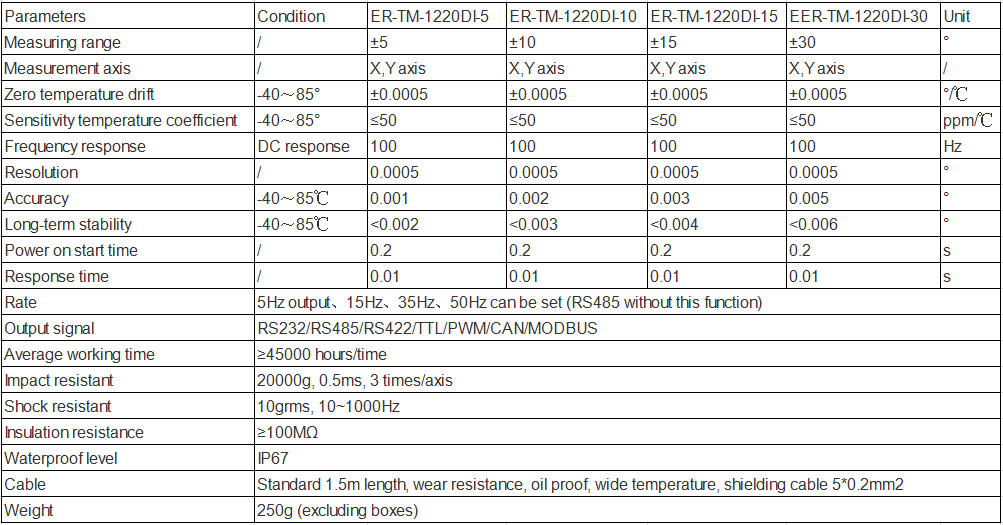

| Parameters | Condition | AND-TM-1220DI-5 | AND-TM-1220DI-10 | AND-TM-1220DI-15 | AND-TM-1220DI-30 | Unit |
| Measuring range | / | ±5 | ±10 | ±15 | ±30 | ○ |
| Measurement axis | / | X,Yaxis | X,Yaxis | X,Yaxis | X,Yaxis | / |
| Zero temperature drift | 40~85° | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | PC |
| Sensitivity temperature coefficient | -40～85° | ≤50 | ≤50 | ≤50 | ≤50 | ppm/℃ |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | / | 0.0005 | 0.0005 | 0.0005 | 0.0005 | ○ |
| Accuracy | 40～85℃ | 0.001 | 0.002 | 0.003 | 0.005 | 。 |
| Long-term stability | 40～85℃ | <0.002 | <0.003 | <0.004 | <0.006 | 。 |
| Power on stat time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
| Rate | 5Hzoutput、15Hz、35Hz、50Hz can be set(RS485 without this function) | |||||
| Output signal | RS232/RS485/RS422/TTL/PWM/CAN/MODBUS | |||||
| Average working time | ≥45000 hours/time | |||||
| mpact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| Insulation resistance | ≥100MQ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5m length,wear resistance,oil proof,wide temperature,shielding cable 5*0.2mm2 | |||||
| Weight | 250g(excluding boxes) | |||||
