Introduction
AND-TS-3267DI is a digital output dual axis inclination sensor used in the field of industrial field control, equipped with a built-in high-precision 16bit A/D converter, and the dual axis inclination value is finally output through the N-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, MODBUS bus are available for selection.
The product is equipped with a high-precision digital sensor from ADI company, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. The output corresponding frequency is 100Hz, which is a real industrial product, with reliable and stable performance, good scalability, and a variety of output options, making it suitable for various industrial control environments.
Features
Dual axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90°(optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Can output RS232/RS485/TTL/MODBUS (optional)
Small volume (90*40*27mm) customizable
Applications
High voltage wire tower pole monitoring
satellite solar antenna positioning
AGV trolley
Mining machinery, oil logging equipment
Medical equipment
Tilting leveling
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams

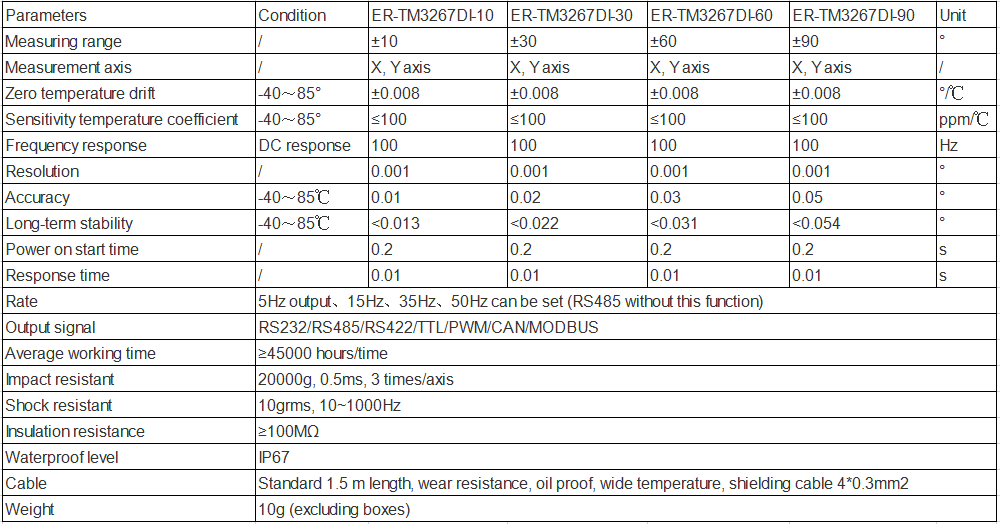

| Parameters | Condition | AND-TM3267DL¹0 | AND-TM3267D-30 | AND-TM3267D60 | AND-TM3267DI90 | Unit |
| Measuring range | / | ±10 | ±30 | ±60 | ±90 | 。 |
| Measurement axis | / | X,Yaxis | X,Yaxis | X,Yaxis | X,Yaxis | / |
| Zero temperature drift | 40~85° | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ℃ |
| Sensitivity temperature coefficient | 40～85° | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | 。 | |
| Accuracy | 40～85℃ | 0.01 | 0.02 | 0.03 | 0.05 | 。 |
| Long-term stability | 40～85℃ | <0.013 | <0.022 | <0.031 | <0.054 | ○ |
| Power onstart time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
| Rate | 5Hzoutput、15Hz、35Hz、50Hz canbe set(RS485 without this function) | |||||
| Output signal | RS232/RS485/RS422/TTL/PWM/CAN/MODBUS | |||||
| Average working time | ≥45000 hours/time | |||||
| mpact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| Insulation resistance | ≥100MQ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5mlength,wear resistance,oil proof,wide temperature,shielding cable 4*0.3mm2 | |||||
| Weight | 10g(excluding boxes) | |||||
