Introduction
It is a standard industrial high-precision current output single-axis tilt sensor, with standard currents of 4-20mA, 0-20mA, 0-24mA to choose, and RS232 output, which can transmit 2000 meters away. Users only need to collect the sensor voltage value and can calculate the current object tilt angle. The built-in (MEMS) solid pendulum, by measuring changes in the static gravitational field, translates into changes in inclination.
The product adopts MEMS sensor production technology to accurately compensate and correct temperature errors and linear errors. It has the advantages of high accuracy, small size, high packaging process, withstand strong vibration, built-in anti-radio frequency, anti-electromagnetic interference circuit, especially suitable for the application of underground trenchless machinery and other harsh industrial environments.
Features
Single axis tilt monitoring
Full range accuracy 0.005°, resolution 0.0007°
Output interface 4~20mA, 0~20mA, 0~24mA (optional)
Wide-voltage input DC 11~36V
Wide temperature working -40~+85℃
Range 0~±5/±15/±30° (optional)
High vibration resistance >20000g
IP67 protection
Can output RS232 at the same time
Volume (107*55*27mm) (customizable)
Applications
Railway gauge ruler, gauge instrument
Satellite solar antenna positioning
High altitude work vehicle
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams

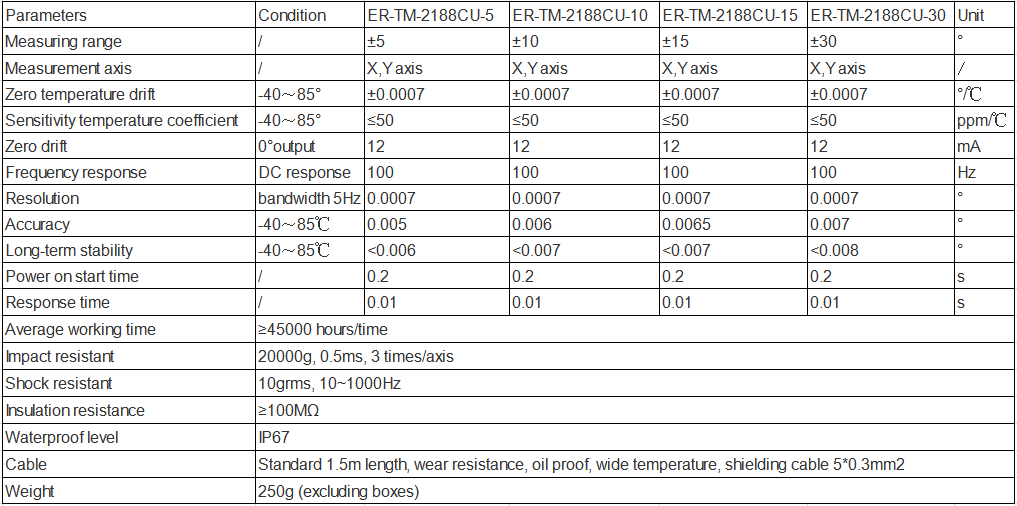

| Parameters | Condition | AND-TM-2188CU-5 | AND-TM-2188CU-10 | AND-TM-2188CU-15 | AND-TM-2188CU-30 | Unit |
| Measuring range | / | ±5 | ±10 | ±15 | ±30 | 。 |
| Measurement axis | / | X,Yaxis | X,Yaxis | X,Yaxis | X,Yaxis | / |
| Zero temperature drift | 40~85° | ±0.0007 | ±0.0007 | ±0.0007 | ±0.0007 | rC |
| Sensitivity temperature coefficient | 40～85° | ≤50 | ≤50 | ≤50 | ≤50 | ppm/C |
| Zero drift | 0°output | 12 | 12 | 12 | 12 | mA |
| Frequency response | DC response | 100 | 100 | 100 | 100 | Hz |
| Resolution | bandwidth5Hz | 0.0007 | 0.0007 | 0.0007 | 0.0007 | 。 |
| Accuracy | 40~85℃ | 0.005 | 0.006 | 0.0065 | 0.007 | 。 |
| Long-term stability | 40～85℃ | <0.006 | <0.007 | <0.007 | <0.008 | 。 |
| Power on start time | / | 0.2 | 0.2 | 0.2 | 0.2 | s |
| Response time | / | 0.01 | 0.01 | 0.01 | 0.01 | s |
| Average working time | ≥45000 hours/time | |||||
| mpact resistant | 20000g,0.5ms,3 times/axis | |||||
| Shock resistant | 10grms,10~1000Hz | |||||
| Insulation resistance | ≥100MΩ | |||||
| Waterproof level | IP67 | |||||
| Cable | Standard 1.5m length,wear resistance,oil proof,wide temperature,shielding cable 5*0.3mm2 | |||||
| Weight | 250g(excluding boxes) | |||||
