Introduction
AND-TS-3265CA CANopen output dual axis tilt sensor is specially designed for industrial control field, using industrial standard isolator CAN transceiver, built-in high-precision 16bit A/D differential converter, through N-order filtering algorithm, so as to measure the sensor output relative to the horizontal plane tilt and pitching angle.
The product has a built-in high-precision temperature sensor, which can correct the temperature drift of the sensor according to the change of the built-in temperature sensor to ensure the high repeatability of the product in a low temperature or high temperature environment. The output response frequency standard is up to 100Hz, which is suitable for various harsh industrial control environments.

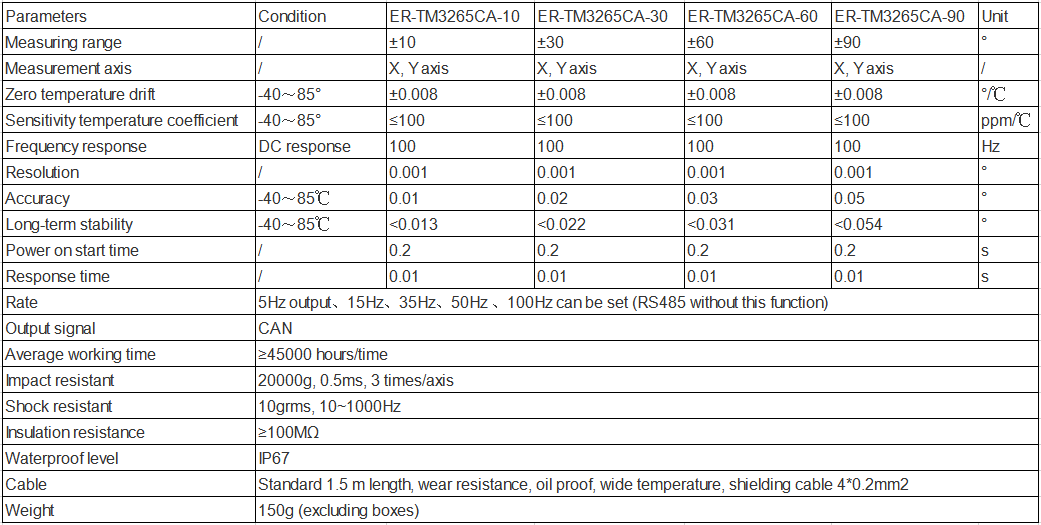

Features
Dual axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36V
Wide temperature working -40~+85℃
Measuring range: 0~±90° (optional)
High vibration resistance >20000g
Baud rate 100K~500K bps
IP67 Protection
Output CANopen
Small volume (90*40*27mm) (customizable)
