Product Features:
All-solid-state design with no moving parts,ensuring low failure rates. Unaffected by turns, frequent coursechanges, or power loss.
With over 500 units installed onboard, thesystems have demon strated stable and reliable performance.
The ftberoptic gyrocompass requires no maintenance during its service life, reducing maintenance costs.It delivers high dynamic accuracy and smoother operation, improving autopilot performance and fue eficlency.
Start-up stabllzation time <30min; compact size, space saving,low power consumption, and noise-free.
Product Features:
All-solid-state design with no moving parts,ensuring low failure rates. Unaffected by turns, frequent coursechanges, or power loss.
With over 500 units installed onboard, thesystems have demon strated stable and reliable performance.
The ftberoptic gyrocompass requires no maintenance during its service life, reducing maintenance costs.It delivers high dynamic accuracy and smoother operation, improving autopilot performance and fue eficlency.
Start-up stabllzation time <30min; compact size, space saving,low power consumption, and noise-free.
| Parameter | ||||||||
| Performance | Name | AND50 | AND60 | AND70 | AND80 | AND110 | AND115 | AND120 |
| Model | AND-MFG-L | AND-MFG-1I | AND-MFG-IV | AND-MFG-V | AND-MFG-I | AND-MFG-M | AND-MFG-H | |
| Heading Accuracy | ±0.75°×secφ | ±0.5°×secø | ±0.4°×secø | ±0.1°×secφ | ±0.5°×secφ | ±0.3°×secφ | ±0.1°×secφ | |
| Attitude Accuracy | ±0.1° | ±0.05° | ±0.01° | ±0.05° | ±0.03° | ±0.01° | ||
| Heaving | ≤5cm or 5%H | |||||||
| Interface | Output |
10×RS422 |
21*RS422(Expandable) | |||||
| Data Output Rate | ≤100Hz(Configurable) | |||||||
| Output Protocol | NMEA0183 | |||||||
| Input Interface | DVL、GNSS | |||||||
| Physical features |
Dimensions | φ180mm*190mm | 280mm*203mm*187mm | |||||
| Weight | ≤6kg | ≤11kg | ||||||
| Supply Voltage | (DC)24V±10% | |||||||
| Power Consumption | ≤10W | ≤30W | ||||||
| Time | Stabilization Time | ( Quay Start)≤10min (All condition)≤30min | ||||||
| Environment | Operation Temperature | -20℃~+60’C | ||||||
| Storage Temperature | -25℃~+70℃ | |||||||

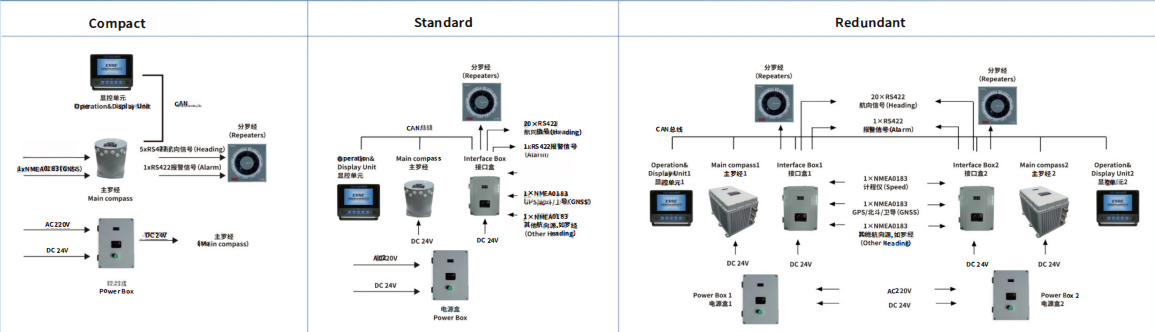

Configuration

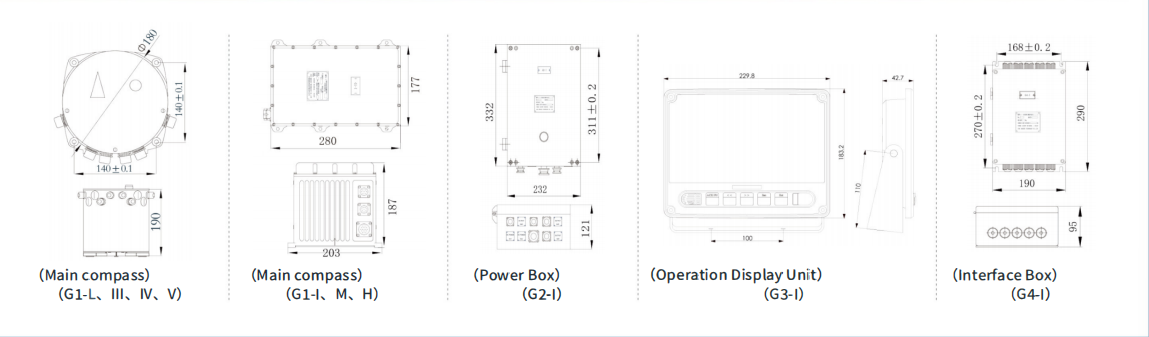

Product Size
| System composition | |||
| Name | Model | Weight | Installation |
| Main Compass | AND-MFG(G1)-L、Ⅲ、iV、 | ≤6 | Floor mount |
| AND-MFG(G1)-1、M、H | ≤11 | ||
| Power box | G2-1 | ≤6 | Floor mount/Wall mount |
| Operation and Display unit | G3-1 | ≤2 | Desktop/flush |
| Interface box | G4-1 | ≤3 | Floor mount/Wall mount |
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
For sensors, parts and modules: in a stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
