Electronic Inclinometer a high-precision MEMS inertial measurement unit (IMU)as itsmotion-sensing element,combined with advanced motion-processing algorithms to measurevessel rll and pitch angles as well as swing periods in real time.

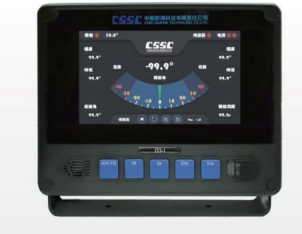

The display unit features a dual digital-analog dial interface,providing intuitive attitude informationand issuing timely alerts for dangerous inclinations to ensure navigation safety.
| Parameter | ||
| Measurement Range | Roll Angle | ±90° |
| Pitch Angle | ||
| Roll Period | 4~40s | |
| Pitch Period | ||
| Measurement Accuracy | Roll Angle Accuracy | 1%或±0.2°
(Which ever is greater) |
| Pitch Angle Accuracy | ||
| Roll Amplitude Accuracy | ||
| Pitch Amplitude Accuracy | ||
| Period Measurement Accuracy | 1s | |
| Supply Voltage | Compatible with both 220V AC and DC power supply | Dual AC 220V/DC Power Input |
| Operating Temperature | Inclinometer Main Unit | -40~+60℃ |
| Control &Display Unit | -10~+55℃ | |
| Ingress Protection (IP)Rating | Inclinometer Main Unit | IP23 |
| Control &Display Unit | IP20 | |

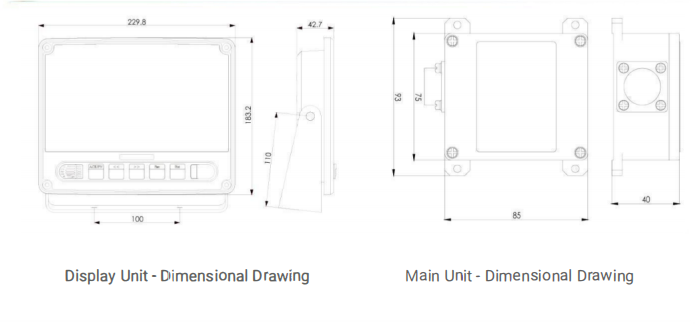

Product Size
