The product consists of MEMS gyro chip, high-precision quartz flexible accelerometer, temperature sensor, digital signal processing circuits, structure and software, etc. It adopts vibration and shock resistant structure design and flexible connection technology, and built-in compensation algorithms such as all-temperature compensation, mounting misalignment angle compensation and nonlinear compensation, etc., so that it can output stable and reliable measurement data under static, dynamic and adverse conditions after error compensation for the user. data under static, dynamic and harsh conditions.
| Parameters | Unit | Type | |
| Gyro | Range(customisable） | °/s | ±400 |
| Zero-bias | °/h | 15 | |
| Zero-bias instability | °/h | 0.3 | |
| Zero-bias stability (10s smo 1σ, room Temp) | °/h | 3 | |
| Zero bias repeatability | °/h | 3 | |
| Zero bias error (full Temp) | °/h | 20 | |
| Random Walk | °/√h | 0.15 | |
| Zero bias acceleration sensitivity | °/h/g | 2 | |
| Resolution | °/h | 2 | |
| Bandwidth | Hz | 125 | |
| Scale factor non-linearity | ppm | 100 | |
| Scale factor repeatability | ppm | 100 | |
| Cross coupling | % | 0.1 | |
| Parameters | Unit | IType | |
| Accelerometer | Range(customisable） | g | ±30 |
| Zero-bias stability (10s smo 1σ, room Temp) | mg | 0.01 | |
| Zero bias repeatability | mg | 0.1 | |
| Zero bias error (full Temp) | mg | 0.1 | |
| Bandwidth | Hz | ≥100 | |
| Scale factor non-linearity | ppm | 300 | |
| Scale factor repeatability | ppm | 300 | |
| Cross coupling | % | 0.1 | |
| Parameters | Unit | Type | |
| Other | Start-up stabilisation time | s | 1 |
| Data update rate | Hz | 200 | |
| Voltage | V | 15 | |
| Steady state power consumption | W | 5 | |
| Ripple | mV | 100 | |
| Operating Temperature | ℃ | -45~85 | |
| Storage Temperature | ℃ | -55~105 | |
| Weight | g | 365±10 | |

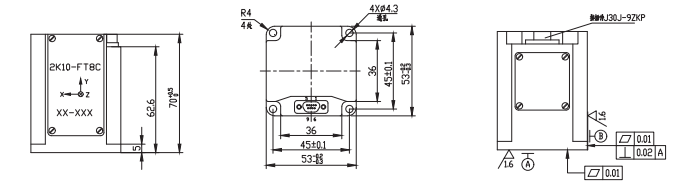

| Dimension | mm | 53*53*70 | |
| Interface | —— | RS-422 | |
