The product consists ofdual-axis attitude sensor, temperature sensor, digital signal processing board, structure and software, built-in compensation algorithms such as all-temperature compensation, mounting misalignment angle compensation, non-linear compensation, etc., which can output stable and reliable measurementdata for the user after error compensation in static, dynamic and harsh conditions.
| Parameters | Unit | Type |
| Range(customisable） | ° | ±80 |
| Full temperature measurement accuracy |
° | 0.01 |
| Bandwidth | Hz | 10 |
| Start-up stabilisation time | s | 1 |
| Voltage | V | 9~36 |
| Working Current | mA | 100 |
| Data update rate | Hz | 20 |
| Operating Temperature | ℃ | -40~60 |
| Storage Temperature | ℃ | -55~105 |
| Weight | g | 800 |

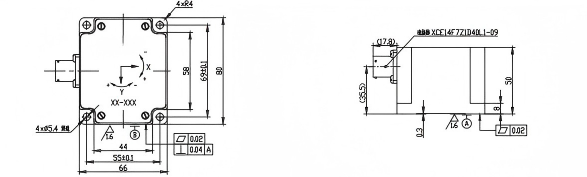

| Dimension | mm | 120*80*70 |
| Interface | CAN |
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
For sensors, parts and modules: in a stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
At here, it’s all about giving the clients thebest quality products.
