The product consists of dual-axis attitude sensor, temperature sensor, digital signal processing board, structure and software, built-in compensation algorithms such as all-temperature compensation, mounting misalignment angle compensation, non-linear compensation, etc., which can output stable and reliable measurement data for the user after error compensation in static, dynamic and harsh conditions.
| Parameters | Unit | AType |
| Range(customisable） | ° | ±80 |
| Full temperature measurement accuracy |
° | 0.01 |
| Bandwidth | Hz | 10 |
| Start-up stabilisation time | s | 1 |
| Voltage | V | 5~24 |
| Working Current | mA | 80 |
| Data update rate | Hz | 20 |
| Operating Temperature | ℃ | -40~60 |
| Storage Temperature | ℃ | -55~105 |
| Weight | g | 22.5 |

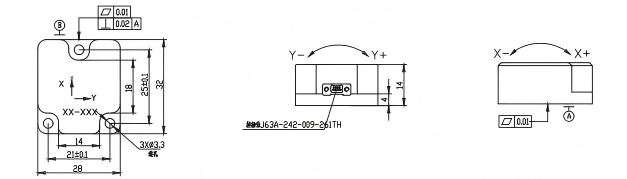

| Dimension | mm | 32*28*14 |
| Interface | —— | RS-422 |
