Introduction
AND-DTG-E6 High Temperature Dynamically Tuned Gyroscope with high-temperature, small size, and short start time, not only can be used in higher operating temperature oil drilling inclinometer tool, but also in short-range missile strapdown attitude system and the inertial measurement instrument.
Features
Light weight;
Small volume;
Short start time;
High temperature.
If interested in High Temperature DTG, pls contact us: info@joinsunny.cn

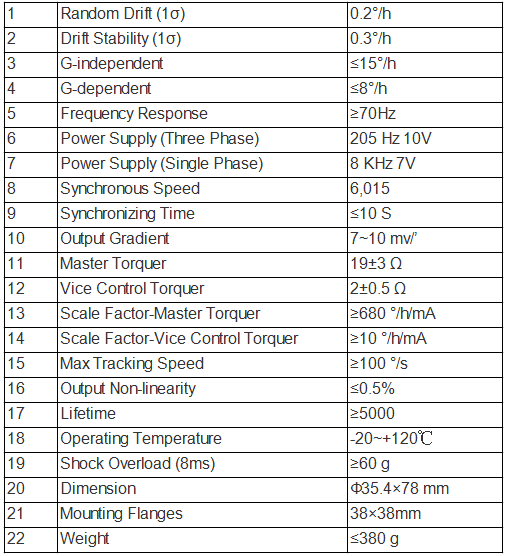

Specifications
| 1 | Random Drift(10) | 0.2h |
| 2 | Drit Stability(10) | 0.3°/h |
| 3 | G-independent | ≤15°/ |
| 4 | G-dependent | ≤8°/h |
| 5 | Frequency Response | ≥70Hz |
| 6 | Power Supply(Three Phase) | 205 Hz10V |
| 7 | Power Supply(Single Phase) | 8 KHz7V |
| 8 | Synchronous Speed | 6,015 |
| 9 | Synchronizing Time | ≤10S |
| 10 | Output Gradient | 7~10 mv” |
| 11 | Master Torquer | 19±3Ω |
| 12 | Vice Control Torquer | 2±0.5Ω |
| 13 | Scale Factor-Master Torquer | ≥680°/h/mA |
| 14 | Scale Factor-Vice Control Torquer | ≥10°/h/mA |
| 15 | Max Tracking Speed | ≥100°/s |
| 16 | Output Non-inearity | ≤0.5% |
| 17 | Lifetime | ≥5000 |
| 18 | Operating Temperature | -20~+120℃ |
| 19 | Shock Overload(8ms) | ≥60 g |
| 20 | Dimension | φ35.4×78 mm |
| 21 | Mounting Flanges | 38×38mm |
| 22 | Weight | ≤380 g |
