Introduction

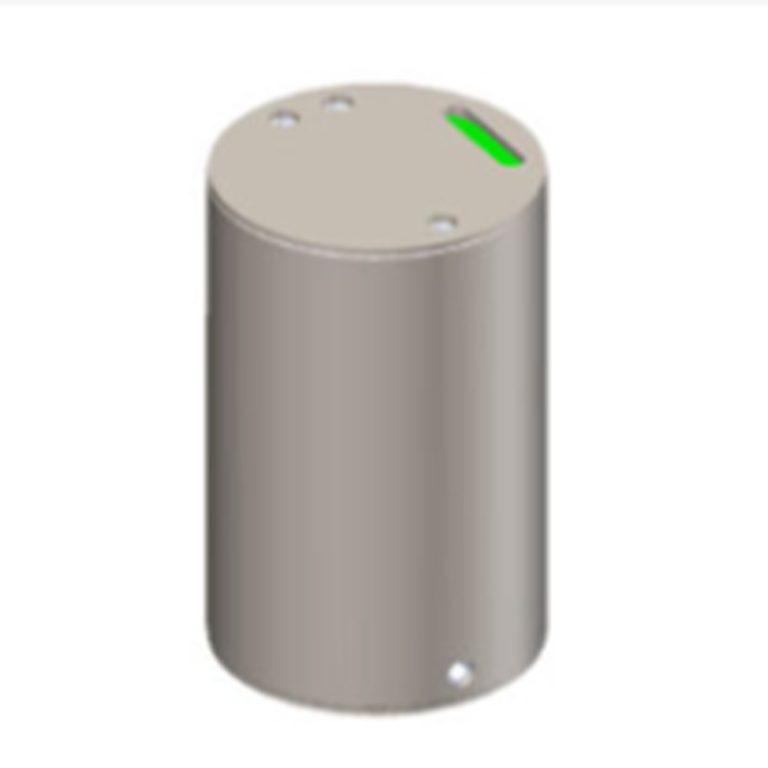

Strapdown Dynamically Tuned Gyroscope with advantages of high precision, long life time, wide dynamic range, and high reliability, and now has been widely used in water surface and land strapdown system, fast true-north seeking instrument, helicopter light guidance platform, television antenna tracker, and so on. The gyroscope also can be used in spaceflight strapdown inertial system and the land, sea, aviation, spaceflight transporter strapdown and platform type attitude system.
Features
High precision;
Light weight;
Small volume;
High reliability
If interested in Strapdown Dynamically Tuned Gyroscope, pls contact us: info@joinsunny.cn

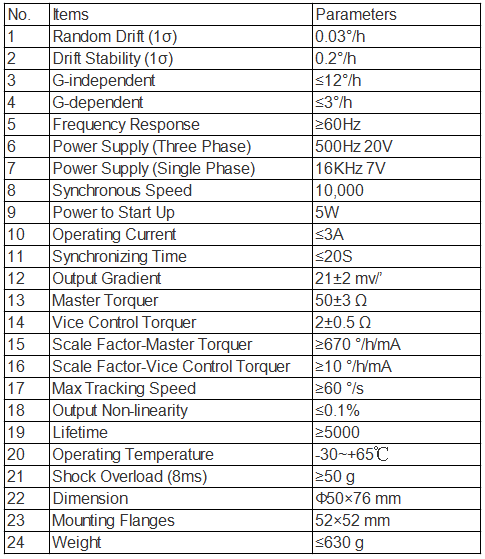

Specifications
| No. | ltems | Parameters |
| 1 | Random Drift(10) | 0.03°/h |
| 2 | Drift Stability(1σ) | 0.2/ |
| 3 | G-independent | ≤12°h |
| 4 | G-dependent | ≤3°/h |
| 5 | Frequency Response | ≥60Hz |
| 6 | Power Supply (Three Phase) | 500Hz 20V |
| 7 | Power Supply (Single Phase) | 16KHz7V |
| 8 | Synchronous Speed | 10,000 |
| 9 | Power to Start Up | 5W |
| 10 | Operating Current | ≤3A |
| 11 | Synchronizing Time | ≤20S |
| 12 | Output Gradient | 21±2 mv” |
| 13 | Master Torquer | 50±3Ω |
| 14 | Vice Control Torquer | 2±0.5Ω |
| 15 | Scale Factor-Master Torquer | ≥670°/h/mA |
| 16 | Scale Factor-Vice Control Torquer | ≥10°/h/mA |
| 17 | Max Tracking Speed | ≥60/s |
| 18 | Output Non-inearity | ≤0.1% |
| 19 | Lifetime | ≥5000 |
| 20 | Operating Temperature | -30~+65℃ |
| 21 | Shock Overload (8ms) | ≥50g |
| 22 | Dimension | φ50×76 mm |
| 23 | Mounting Flanges | 52×52 mm |
| 24 | Weight | ≤630g |
