Introduction
Oil and Gas DTG Gyroscope is designed specifically for the drilling fields. After solving many technical problems, its working temperature can now reach as high as 100 degrees Celsius.
In the drilling fields, inertial devices are greater and more adaptable than flying fields, because of its tough working conditions, especially the higher environmental temperatures. Therefore, the temperature of adaptation and life requirements are very serious.
Features
Working temperature up to 100 degrees Celsius
Better applied to the fields of drilling
Strong adaptability
If interested in Oil and Gas DTG Gyroscope, pls contact us: info@joinsunny.cn

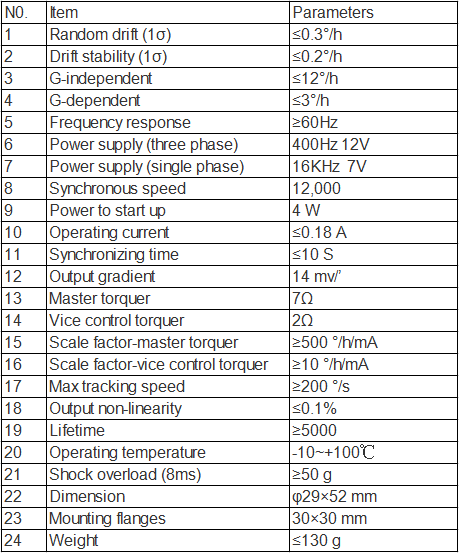

Specifications
| NO. | ltem | Parameters |
| 1 | Random drift(1σ) | ≤0.3°/h |
| 2 | Drift stability(1σ) | ≤0.2/h |
| 3 | G-independent | ≤12°/h |
| 4 | G-dependent | ≤3%/h |
| 5 | Frequency response | ≥60Hz |
| 6 | Power supply (three phase) | 400Hz12V |
| 7 | Power supply(single phase) | 16KHz 7V |
| 8 | Synchronous speed | 12,000 |
| 9 | Power to start up | 4W |
| 10 | Operating current | ≤0.18 A |
| 11 | Synchronizing time | ≤10S |
| 12 | Output gradient | 14 mv” |
| 13 | Master torquer | 70 |
| 14 | Vice control torquer | 20 |
| 15 | Scale factor-master torquer | ≥500°/h/mA |
| 16 | Scale factor-vice control torquer | ≥10°/h/mA |
| 17 | Maxtracking speed | ≥200/s |
| 18 | Output non-linearity | ≤0.1% |
| 19 | Lifetime | ≥5000 |
| 20 | Operating temperature | -10~+100℃ |
| 21 | Shock overload (8ms) | ≥50g |
| 22 | Dimension | φ29×52mm |
| 23 | Mounting flanges | 30×30 mm |
| 24 | Weight | ≤130g |
If you have DHL or Fedex account, we can quote EXW price, otherwise CIF or FOB price.
After we submit the sample price, if more quantity is needed, we will quote the bulk price.
For sensors, parts and modules: in a stock-one week; no stock-2-4 weeks; For systems, generally, 8-12 weeks.
After confirming that the product has quality problems, we will replace it for you free of charge in the shortest possible time.
